Custom Plans:

Plans will include the following view.

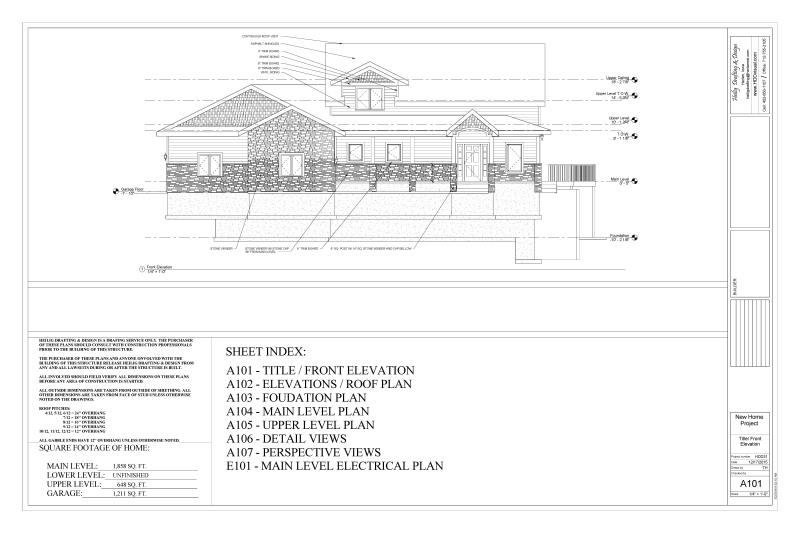

Front Elevation-                               Drawn at 1/4" scale.

Side Elevations-                                Drawn at 1/8" scale.

Roof Plan-                                          Drawn at 3/16" or 1/4" scale.

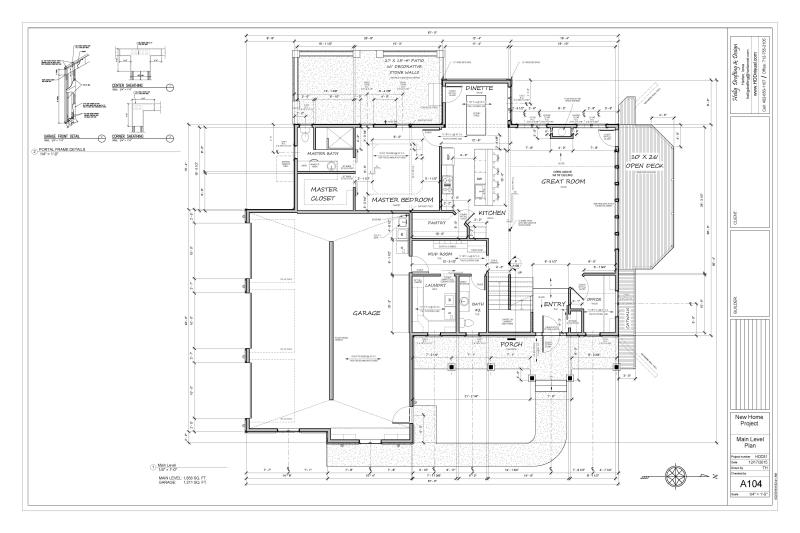

Main Level Plan-                              Drawn at 1/4" scale with details.

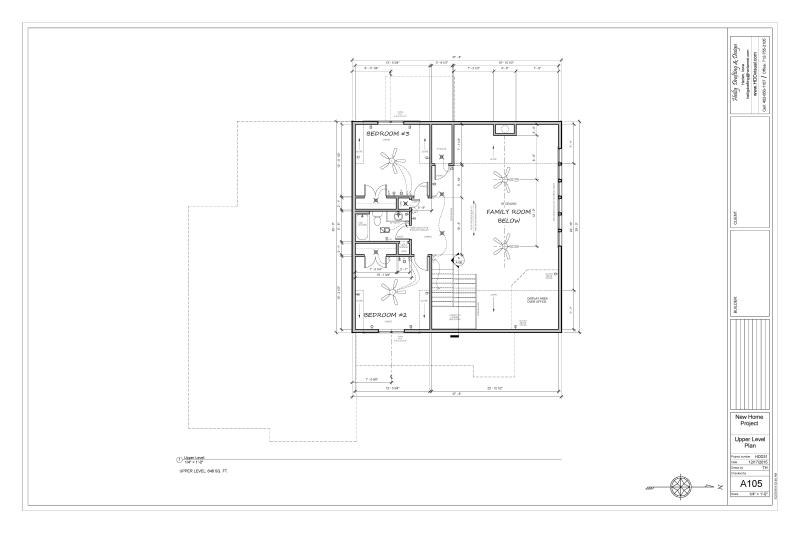

Second Level Plan-                           Drawn to 1/4" scale with details.

Lower Level Plan-                            Drawn at 1/4" scale with details.

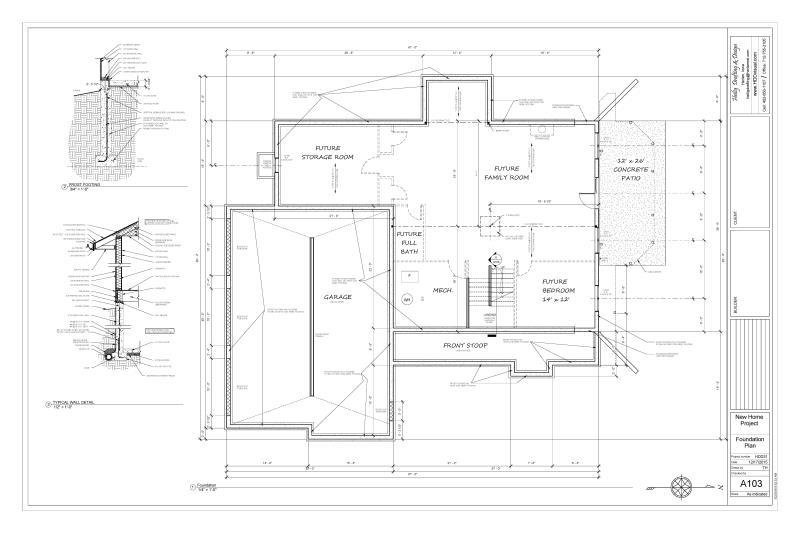

Foundation Plan-                              Drawn at 1/4" scale with details.

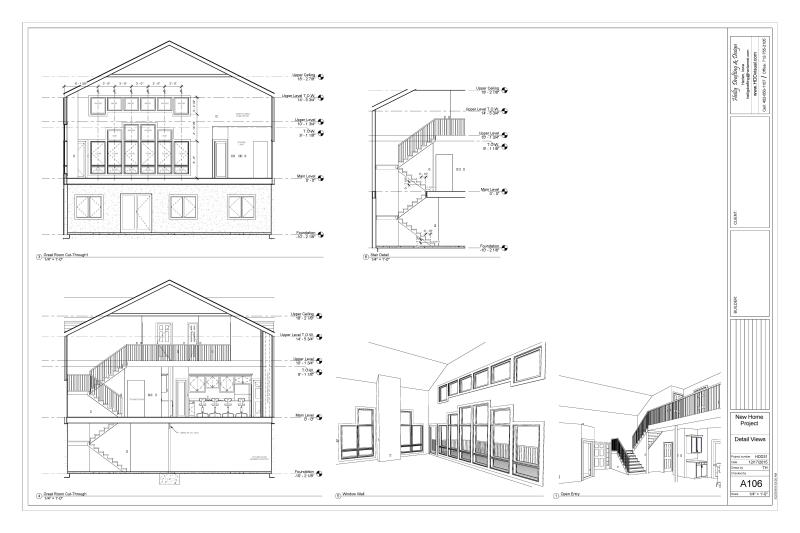

Detail and Section Views-                Typical or Specific to project.

(Example) Wall Sections with or without brick, Stairs, foundation walls

and cut-through views.

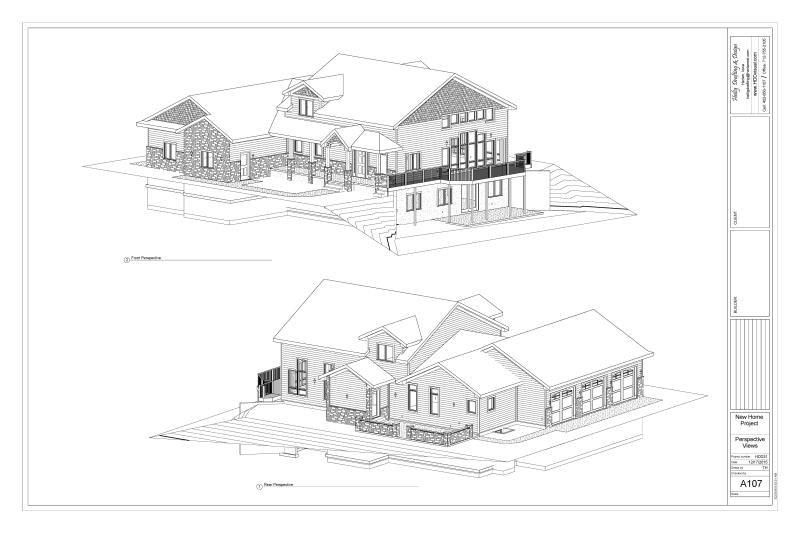

Front and Rear 3D Perspective Views of House Only. (Black & White)

Sample Plans:

New Construction Plan:

Custom plans:

New plans are charged by the square foot.

Areas include:

Main level living space.

Second level living space.

Finished living space in lower level.

3D Renderings & Walk-throughs:

For an additional cost you can receive 3D High Resolution color images and/or

walk-through of your project.

(Prices are greatly reduced when added to your project.)

Additions:

Additions and remodels are charged at an hourly rate.

"See It Before You Build"

Visualization:

Your Project:

You can also get color renderings and/or a walk-through of your existing plans. See 3D service page for sample images.

Needed from you:

List of materials.

List of colors desired.

A set of your project plans.

Note:

Heilig Drafting & Design is a Drafting and Visualization Service.

We are not an Architectural or Engineering Firm.
